Sistema di copertura Alar
con doppia lamiera

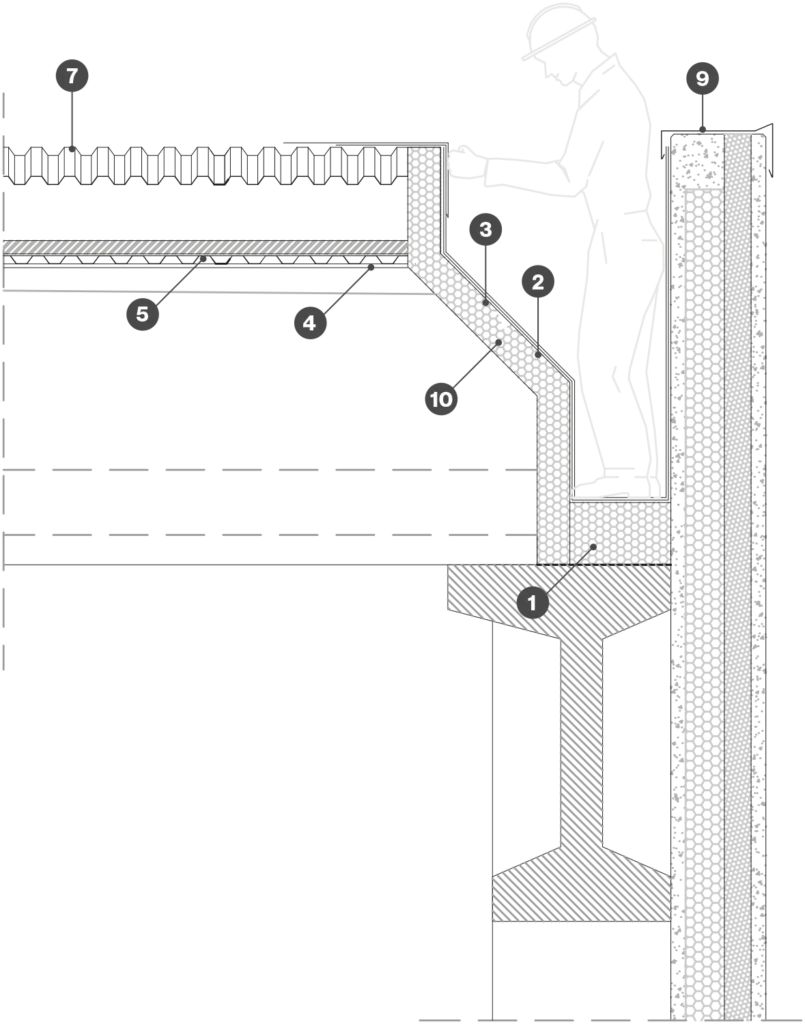

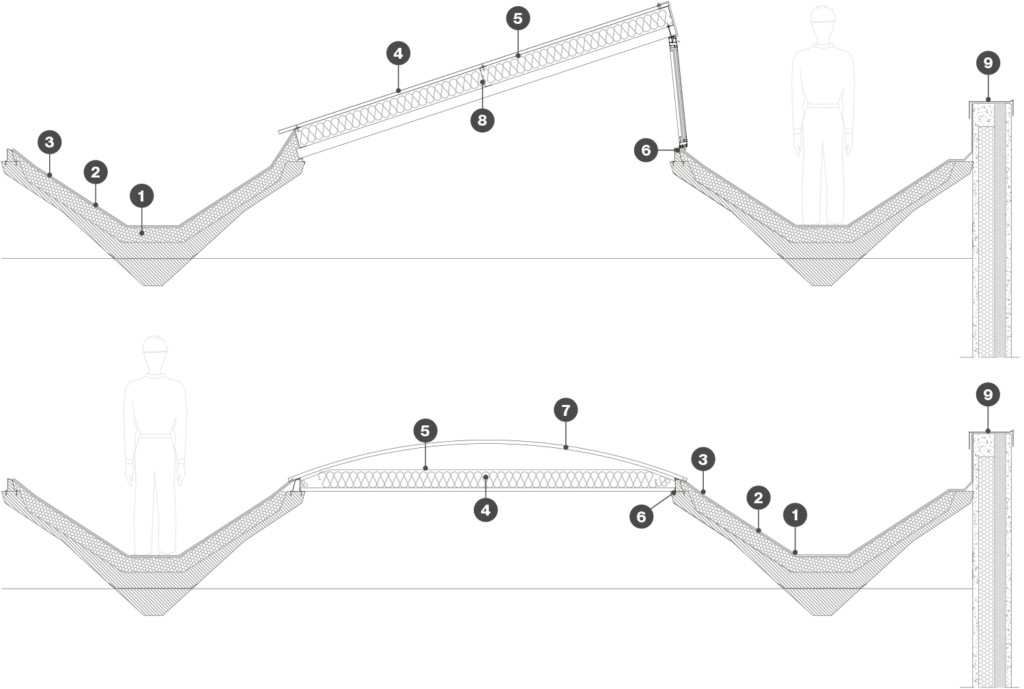

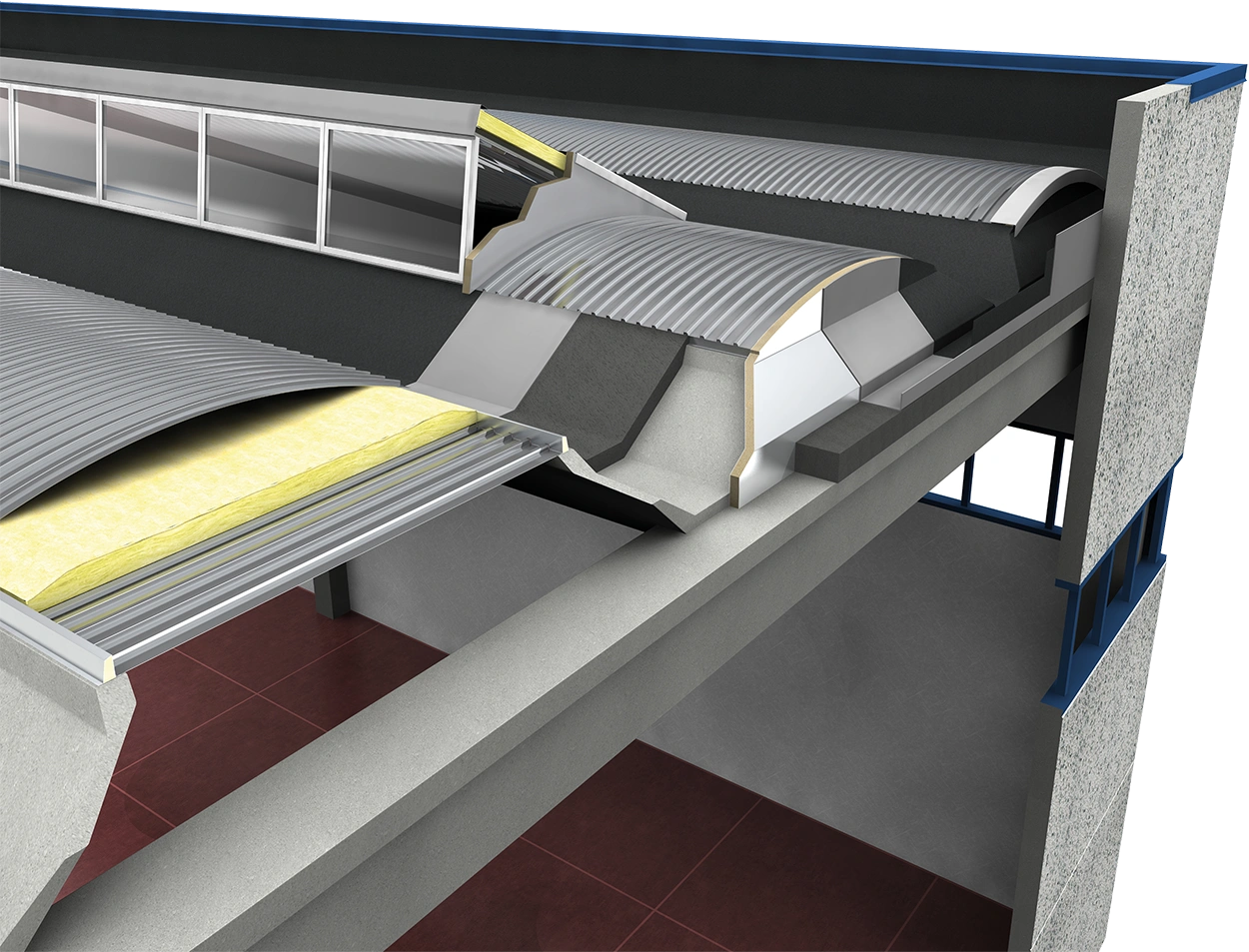

Pannello isolante in polistirene autoestinguente/Grafitato sp. 30/120 mm EPS 100 KPa

1ª guaina impermeabile sp. 3 mm flessibilità -15°C

2ª guaina impermeabile massa ≥ 4,5 Kg/mq flessibilità -15°C finitura superficiale ardesiata

Lamiera grecata retta profilo 28 sp 5/10 mm

Lana di vetro sp 50/160 mm

Bancalino coibentto in lamiera sp 10/10

Lastra curva profilo 28 Aluzink 185 gr/mq sp. 6/10

Scossalina coprifilo pannelli in lamiera zincata

Timpano in materiale composito sp. 40/100 mm

Sistema di copertura Alar con doppia lamiera

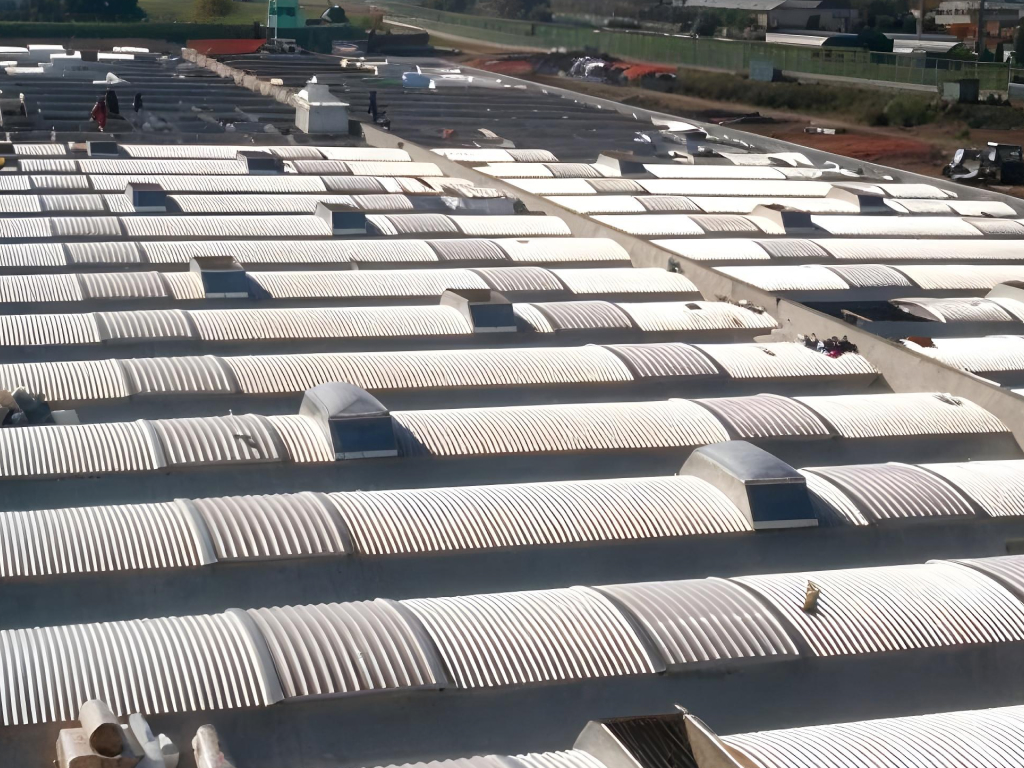

I sistemi di copertura Alar con doppia lamiera hanno un soffitto piano integrato e permettono di realizzare coperture leggere, efficienti e massimamente resistenti.

I sistemi di copertura Alar con doppia lamiera sono integrabili con lucernari zenitali e a shed, impianti fotovoltaici e E.F.C. (evacuatori di fumo e calore).

Scarica la brochure Alar

Contattaci
