TT Beams: A technical balance for advanced roofing solutions

HomeConstruction elements TT BEAMS ROOFING SYSTEM
TT Beams

The TT Beam system by Tesi System is a roofing solution designed with prestressed reinforced concrete elements. Its structure features two variable-section beams, adaptable to different spans and loads, connected by a flat 5 cm thick slab.

A simple yet high-performance configuration that allows for dual use:

  • as a roofing system with a completely flat extrados, capable of supporting heavy loads;
  • as an intermediate floor element;

The combination with a waterproof and insulating membrane, free of thermal bridges, ensures a walkable surface and impeccable water tightness, making it ideal also for functional terraces.

Download TT Beam Technical Sheet
Contact us
Thermal transmittance

Thermal transmittance

Thermal transmittance (U-value) table for opaque horizontal or inclined roofing structures, toward the exterior and unconditioned spaces.

CLIMATE ZONEA and BCDEF
U (W/m2K)2015(1)0.380.360.300.250.23
2019/2021(2)0.350.330.260.220.20

(1) From July 1, 2015, for all buildings
(2) From January 1, 2019, for public buildings and buildings for public use, and from January 1, 2021, for all other buildings

Types of TT Beams

Types of TT Beams

Two different products are available for the TT Beams roofing systems, both with heights ranging from 30 to 100 cm and a standard length of 250 cm:

TT R60

Maximum length over 30 meters

Load vs. length graph
Live loads referenced to 5.50 m spacing

h 30

h 40

h 50

h 60

h 70

h 80

h 90

h 100

TT R120

Maximum length over 30 meters

Load vs. length graph
Live loads referred to a 5.50 m spacing

h 30

h 40

h 50

h 60

h 70

h 80

h 90

h 100

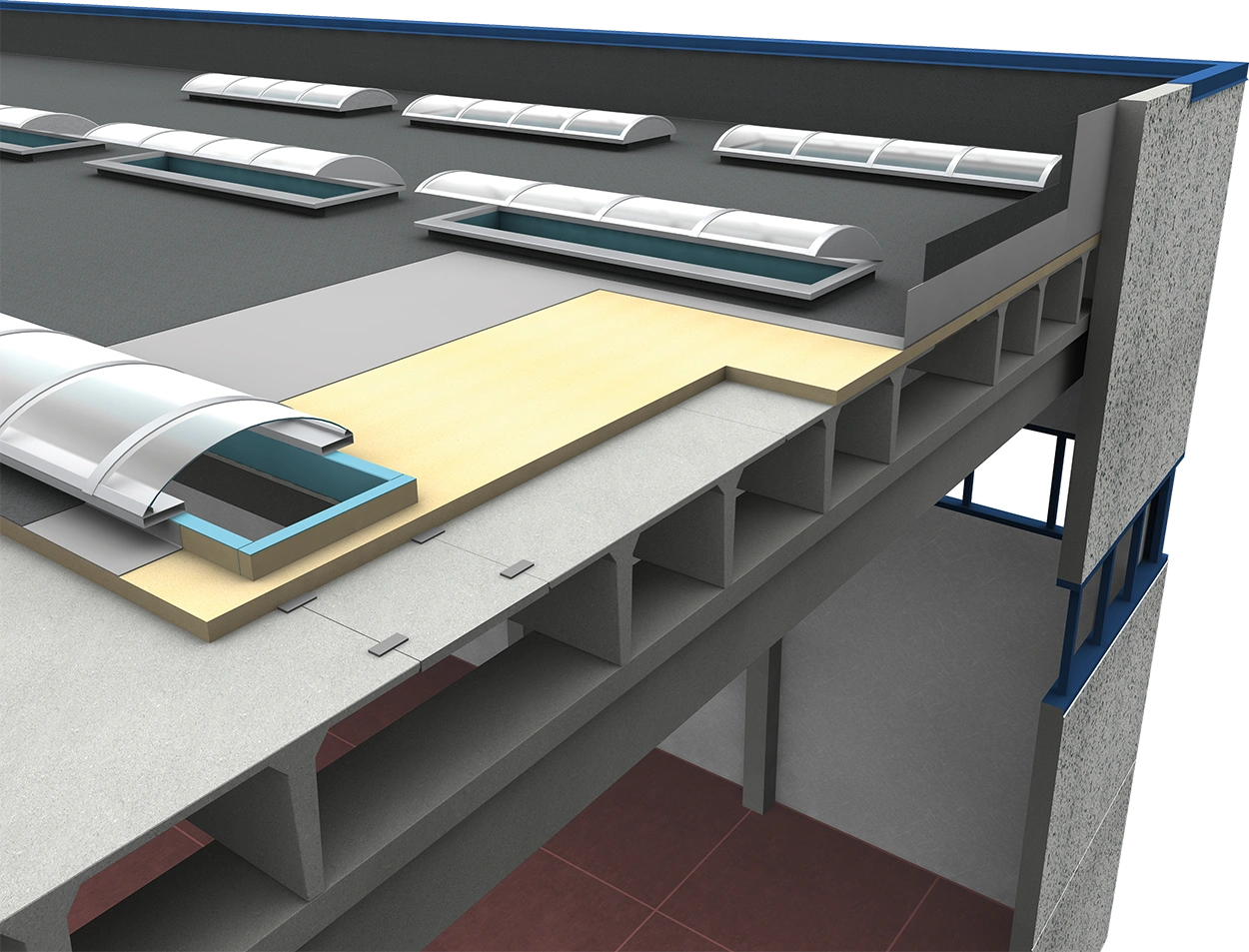

TT Beam structural details

TT Beam structural details

immagine interattiva
1
2
3
4
5
6
7
8
9
Scossalina coprifilo pannelli in lamiera zincata
Scossalina coprifilo pannelli in lamiera zincata
Scossalina coprifilo pannelli in lamiera zincata
Scossalina coprifilo pannelli in lamiera zincata
Scossalina coprifilo pannelli in lamiera zincata
Scossalina coprifilo pannelli in lamiera zincata
Scossalina coprifilo pannelli in lamiera zincata
Scossalina coprifilo pannelli in lamiera zincata
Scossalina coprifilo pannelli in lamiera zincata
Tegolo – Image 1 Tegolo – Image 2 Tegolo – Image 3 Tegolo – Image 4 Tegolo – Image 5 Tegolo – Image 6 Tegolo – Image 7
TT Beams Roofing System
  1. [vc_section el_class="content"][vc_row el_class="row-title"][vc_column width="2/3"][indietro-shortcode testo="View all roofing systems" link="url:https%3A%2F%2Fwww.tesisystem.it%2Fen%2Fconstruction-elements%2Froofing-systems%2F|title:Sistemi%20di%20copertura"][titolo-shortcode title_type="h1" testo="TT Beams: A technical balance for advanced roofing solutions" classe="split-chars"][/vc_column][vc_column width="1/3"][breadcrumb-shortcode][/vc_column][/vc_row][vc_row el_class="img full-width"][vc_column][vc_single_image image="15718" img_size="full" css=""][/vc_column][/vc_row][vc_row el_class="row-paragraph"][vc_column width="1/4" el_class="col titoletto"][titoletto-shortcode testo="TT Beams" classe="split-chars"][/vc_column][vc_column width="3/4" el_class="col text"][vc_column_text css="" el_class="text-animation"]

  2. The TT Beam system by Tesi System is a roofing solution designed with prestressed reinforced concrete elements. Its structure features two variable-section beams, adaptable to different spans and loads, connected by a flat 5 cm thick slab.

  3. A simple yet high-performance configuration that allows for dual use:

    • as a roofing system with a completely flat extrados, capable of supporting heavy loads;
    • as an intermediate floor element;

  6. The combination with a waterproof and insulating membrane, free of thermal bridges, ensures a walkable surface and impeccable water tightness, making it ideal also for functional terraces.

  7. [/vc_column_text][vc_row_inner el_class="row-multiple-buttons"][vc_column_inner][bottone-shortcode testo="Download TT Beam Technical Sheet" link="url:https%3A%2F%2Fwww.tesisystem.it%2Fwp-content%2Fuploads%2F2025%2F05%2FTEGOLO_TT_SCHEDA_PRODOTTO.pdf|target:_blank"][bottone-shortcode testo="Contact us" link="url:https%3A%2F%2Fwww.tesisystem.it%2Fen%2Fcontacts%2F|title:Contacts|target:_blank"][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row el_class="row-paragraph"][vc_column width="1/4" el_class="col titoletto"][titoletto-shortcode testo="Thermal transmittance" classe="split-chars"][/vc_column][vc_column width="3/4" el_class="col text"][titolo-shortcode title_type="h3" testo="Thermal transmittance" classe="split-chars"][vc_column_text css="" el_class="text-animation"]Thermal transmittance (U-value) table for opaque horizontal or inclined roofing structures, toward the exterior and unconditioned spaces.[/vc_column_text][vc_raw_html css="" el_class="table-trasmittanza"]JTNDdGFibGUlM0UlM0N0aGVhZCUzRSUwRCUwQSUyMCUyMCUzQ3RyJTNFJTBEJTBBJTIwJTIwJTIwJTIwJTNDdGglMjBjb2xzcGFuJTNEJTIyMiUyMiUyMGNsYXNzJTNEJTIyZml4ZWQlMjIlM0UlM0NzdHJvbmclM0VDTElNQVRFJTIwWk9ORSUzQyUyRnN0cm9uZyUzRSUzQyUyRnRoJTNFJTBEJTBBJTIwJTIwJTIwJTIwJTNDdGglM0VBJTIwYW5kJTIwQiUzQyUyRnRoJTNFJTBEJTBBJTIwJTIwJTIwJTIwJTNDdGglM0VDJTNDJTJGdGglM0UlMEQlMEElMjAlMjAlMjAlMjAlM0N0aCUzRUQlM0MlMkZ0aCUzRSUwRCUwQSUyMCUyMCUyMCUyMCUzQ3RoJTNFJTNDc3Ryb25nJTNFRSUzQyUyRnN0cm9uZyUzRSUzQyUyRnRoJTNFJTBEJTBBJTIwJTIwJTIwJTIwJTNDdGglM0UlM0NzdHJvbmclM0VGJTNDJTJGc3Ryb25nJTNFJTNDJTJGdGglM0UlMEQlMEElMjAlMjAlM0MlMkZ0ciUzRSUzQyUyRnRoZWFkJTNFJTBEJTBBJTNDdGJvZHklM0UlMEQlMEElMjAlMjAlM0N0ciUzRSUwRCUwQSUyMCUyMCUyMCUyMCUzQ3RkJTIwY2xhc3MlM0QlMjJ5ZWFyJTIyJTIwcm93c3BhbiUzRCUyMjIlMjIlM0VVJTIwJTI4VyUyRm0lM0NzdXAlM0UyJTNDJTJGc3VwJTNFSyUyOSUzQyUyRnRkJTNFJTBEJTBBJTIwJTIwJTIwJTIwJTNDdGQlMjBjbGFzcyUzRCUyMnllYXIlMjIlM0UyMDE1JTNDc3VwJTNFJTI4MSUyOSUzQyUyRnN1cCUzRSUzQyUyRnRkJTNFJTBEJTBBJTIwJTIwJTIwJTIwJTNDdGQlM0UwLjM4JTNDJTJGdGQlM0UlMEQlMEElMjAlMjAlMjAlMjAlM0N0ZCUzRTAuMzYlM0MlMkZ0ZCUzRSUwRCUwQSUyMCUyMCUyMCUyMCUzQ3RkJTNFMC4zMCUzQyUyRnRkJTNFJTBEJTBBJTIwJTIwJTIwJTIwJTNDdGQlM0UlM0NzdHJvbmclM0UwLjI1JTNDJTJGc3Ryb25nJTNFJTNDJTJGdGQlM0UlMEQlMEElMjAlMjAlMjAlMjAlM0N0ZCUzRSUzQ3N0cm9uZyUzRTAuMjMlM0MlMkZzdHJvbmclM0UlM0MlMkZ0ZCUzRSUwRCUwQSUyMCUyMCUzQyUyRnRyJTNFJTBEJTBBJTIwJTIwJTNDdHIlM0UlMEQlMEElMjAlMjAlMjAlMjAlM0N0ZCUyMGNsYXNzJTNEJTIyeWVhciUyMiUzRTIwMTklMkYyMDIxJTNDc3VwJTNFJTI4MiUyOSUzQyUyRnN1cCUzRSUzQyUyRnRkJTNFJTBEJTBBJTIwJTIwJTIwJTIwJTNDdGQlM0UwLjM1JTNDJTJGdGQlM0UlMEQlMEElMjAlMjAlMjAlMjAlM0N0ZCUzRTAuMzMlM0MlMkZ0ZCUzRSUwRCUwQSUyMCUyMCUyMCUyMCUzQ3RkJTNFMC4yNiUzQyUyRnRkJTNFJTBEJTBBJTIwJTIwJTIwJTIwJTNDdGQlM0UlM0NzdHJvbmclM0UwLjIyJTNDJTJGc3Ryb25nJTNFJTNDJTJGdGQlM0UlMEQlMEElMjAlMjAlMjAlMjAlM0N0ZCUzRSUzQ3N0cm9uZyUzRTAuMjAlM0MlMkZzdHJvbmclM0UlM0MlMkZ0ZCUzRSUwRCUwQSUyMCUyMCUzQyUyRnRyJTNFJTBEJTBBJTNDJTJGdGJvZHklM0UlMEQlMEElM0MlMkZ0YWJsZSUzRQ==[/vc_raw_html][vc_column_text css="" el_class="min text-animation"](1) From July 1, 2015, for all buildings
    (2) From January 1, 2019, for public buildings and buildings for public use, and from January 1, 2021, for all other buildings[/vc_column_text][/vc_column][/vc_row][vc_row el_class="row-paragraph"][vc_column width="1/4" el_class="col titoletto"][titoletto-shortcode testo="Types of TT Beams" classe="split-chars"][/vc_column][vc_column width="3/4" el_class="col text"][titolo-shortcode title_type="h3" testo="Types of TT Beams" classe="split-chars"][vc_column_text css="" el_class="text-animation"]Two different products are available for the TT Beams roofing systems, both with heights ranging from 30 to 100 cm and a standard length of 250 cm:[/vc_column_text][/vc_column][/vc_row][vc_row el_class="row-accordion-alar"][vc_column][vc_row_inner el_class="row-riga-accordion active"][vc_column_inner][titolo-shortcode title_type="h3" testo="TT R60" classe="split-chars"][vc_column_text css="" el_class="min text-animation"]Maximum length over 30 meters[/vc_column_text][vc_single_image image="15719" img_size="full" css="" el_class="animation-img"][vc_column_text css="" el_class="text-animation"]Load vs. length graph
    Live loads referenced to 5.50 m spacing[/vc_column_text][grafico-shortcode image="15934" contenuti="%5B%7B%22color%22%3A%22%234370a7%22%2C%22description%22%3A%22h%2030%22%7D%2C%7B%22color%22%3A%22%23aa4440%22%2C%22description%22%3A%22h%2040%22%7D%2C%7B%22color%22%3A%22%2393ac59%22%2C%22description%22%3A%22h%2050%20%22%7D%2C%7B%22color%22%3A%22%236d548d%22%2C%22description%22%3A%22h%2060%22%7D%2C%7B%22color%22%3A%22%235ca4ba%22%2C%22description%22%3A%22h%2070%22%7D%2C%7B%22color%22%3A%22%23da8238%22%2C%22description%22%3A%22h%2080%22%7D%2C%7B%22color%22%3A%22%238ea6cc%22%2C%22description%22%3A%22h%2090%22%7D%2C%7B%22color%22%3A%22%23ce8e8e%22%2C%22description%22%3A%22h%20100%22%7D%5D"][/vc_column_inner][/vc_row_inner][vc_row_inner el_class="row-riga-accordion"][vc_column_inner][titolo-shortcode title_type="h3" testo="TT R120" classe="split-chars"][vc_column_text css="" el_class="text-animation"]Maximum length over 30 meters[/vc_column_text][vc_single_image image="15720" img_size="full" css="" el_class="animation-img"][vc_column_text css="" el_class="text-animation"]Load vs. length graph
    Live loads referred to a 5.50 m spacing[/vc_column_text][grafico-shortcode image="15935" contenuti="%5B%7B%22color%22%3A%22%234370a7%22%2C%22description%22%3A%22h%2030%22%7D%2C%7B%22color%22%3A%22%23aa4440%22%2C%22description%22%3A%22h%2040%22%7D%2C%7B%22color%22%3A%22%2393ac59%22%2C%22description%22%3A%22h%2050%20%22%7D%2C%7B%22color%22%3A%22%236d548d%22%2C%22description%22%3A%22h%2060%22%7D%2C%7B%22color%22%3A%22%235ca4ba%22%2C%22description%22%3A%22h%2070%22%7D%2C%7B%22color%22%3A%22%23da8238%22%2C%22description%22%3A%22h%2080%20%22%7D%2C%7B%22color%22%3A%22%238ea6cc%22%2C%22description%22%3A%22h%2090%20%22%7D%2C%7B%22color%22%3A%22%23ce8e8e%22%2C%22description%22%3A%22h%20100%22%7D%5D"][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row el_class="light-grey full-width w-padding"][vc_column][vc_row_inner el_class="row-paragraph"][vc_column_inner width="1/4"][titoletto-shortcode testo="TT Beam structural details"][/vc_column_inner][vc_column_inner width="3/4"][titolo-shortcode title_type="h3" testo="TT Beam structural details" classe="split-chars"][/vc_column_inner][/vc_row_inner][immagine-shortcode punti="%5B%7B%22number%22%3A%221%22%2C%22desc%22%3A%22Scossalina%20coprifilo%20pannelli%20in%20lamiera%20zincata%22%2C%22x%22%3A%2245%22%2C%22y%22%3A%2235%22%7D%2C%7B%22number%22%3A%222%22%2C%22desc%22%3A%22Scossalina%20coprifilo%20pannelli%20in%20lamiera%20zincata%22%2C%22x%22%3A%2236%22%2C%22y%22%3A%2234%22%7D%2C%7B%22number%22%3A%223%22%2C%22desc%22%3A%22Scossalina%20coprifilo%20pannelli%20in%20lamiera%20zincata%22%2C%22x%22%3A%2227%22%2C%22y%22%3A%2229%22%7D%2C%7B%22number%22%3A%224%22%2C%22desc%22%3A%22Scossalina%20coprifilo%20pannelli%20in%20lamiera%20zincata%22%2C%22x%22%3A%2240%22%2C%22y%22%3A%2212%22%7D%2C%7B%22number%22%3A%225%22%2C%22desc%22%3A%22Scossalina%20coprifilo%20pannelli%20in%20lamiera%20zincata%22%2C%22x%22%3A%2255%22%2C%22y%22%3A%2224%22%7D%2C%7B%22number%22%3A%226%22%2C%22desc%22%3A%22Scossalina%20coprifilo%20pannelli%20in%20lamiera%20zincata%22%2C%22x%22%3A%2230%22%2C%22y%22%3A%2217%22%7D%2C%7B%22number%22%3A%227%22%2C%22desc%22%3A%22Scossalina%20coprifilo%20pannelli%20in%20lamiera%20zincata%22%2C%22x%22%3A%2243%22%2C%22y%22%3A%2246%22%7D%2C%7B%22number%22%3A%228%22%2C%22desc%22%3A%22Scossalina%20coprifilo%20pannelli%20in%20lamiera%20zincata%22%2C%22x%22%3A%2289%22%2C%22y%22%3A%229%22%7D%2C%7B%22number%22%3A%229%22%2C%22desc%22%3A%22Scossalina%20coprifilo%20pannelli%20in%20lamiera%20zincata%22%2C%22x%22%3A%2263%22%2C%22y%22%3A%2240%22%7D%5D" classe="full-width" foto="15729"][gallery-costruttivi gallery_items="53"][vc_row_inner el_class="row-paragraph"][vc_column_inner width="1/4"][titoletto-shortcode testo="Project flexibility"][/vc_column_inner][vc_column_inner width="3/4"][titolo-shortcode title_type="h3" testo="Project flexibility" classe="split-chars"][vc_column_text css="" el_class="text-animation"]

  8. TT Beam also stands out for its flexibility in integrating natural lighting solutions, with zenithal or shed skylights, which are also available in operable versions for subsequent installations.

  9. The transparent skylights are generally made of multi-wall cellular polycarbonate, but specific types of glass can be used for particular requirements. Additionally, the system allows for easy installation of smoke and heat exhaust ventilators (SHEVS), ensuring maximum design freedom.

  10. [/vc_column_text][vc_single_image image="15726" img_size="full" css="" el_class="animation-img"][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row el_class="row-spaced-text"][vc_column][titoliAnimati-shortcode righe="%5B%7B%22centro%22%3A%22left%22%2C%22testo%22%3A%22Projects%20with%22%2C%22psx%22%3A%224.5%22%7D%2C%7B%22centro%22%3A%22center%22%2C%22testo%22%3A%22TT%20Tegolo%20roofing%20system%22%7D%5D"][vc_column_text css="" el_class="text-animation"]TT Beam combines balance and maximum structural stability in a single rational, elegant, and fully walkable roofing system.[/vc_column_text][/vc_column][/vc_row][vc_row el_class="row-carosello-progetti"][vc_column][carosello-progetti-shortcode taxonomy_soluzioni="53" link_text="Discover all projects" link_url="url:https%3A%2F%2Fwww.tesisystem.it%2Fen%2Fprojects%2F|title:Realizzazioni|target:_blank" classe="without-section-title"][/vc_column][/vc_row][/vc_section]
Project flexibility

Project flexibility

TT Beam also stands out for its flexibility in integrating natural lighting solutions, with zenithal or shed skylights, which are also available in operable versions for subsequent installations.

The transparent skylights are generally made of multi-wall cellular polycarbonate, but specific types of glass can be used for particular requirements. Additionally, the system allows for easy installation of smoke and heat exhaust ventilators (SHEVS), ensuring maximum design freedom.

Projects with

TT Tegolo roofing system

TT Beam combines balance and maximum structural stability in a single rational, elegant, and fully walkable roofing system.
